Water Treatment – Pure Steam Generator

PURE STEAM. FROM STERILIZATION TO DIRECT CONTACT WITH A.P.I.

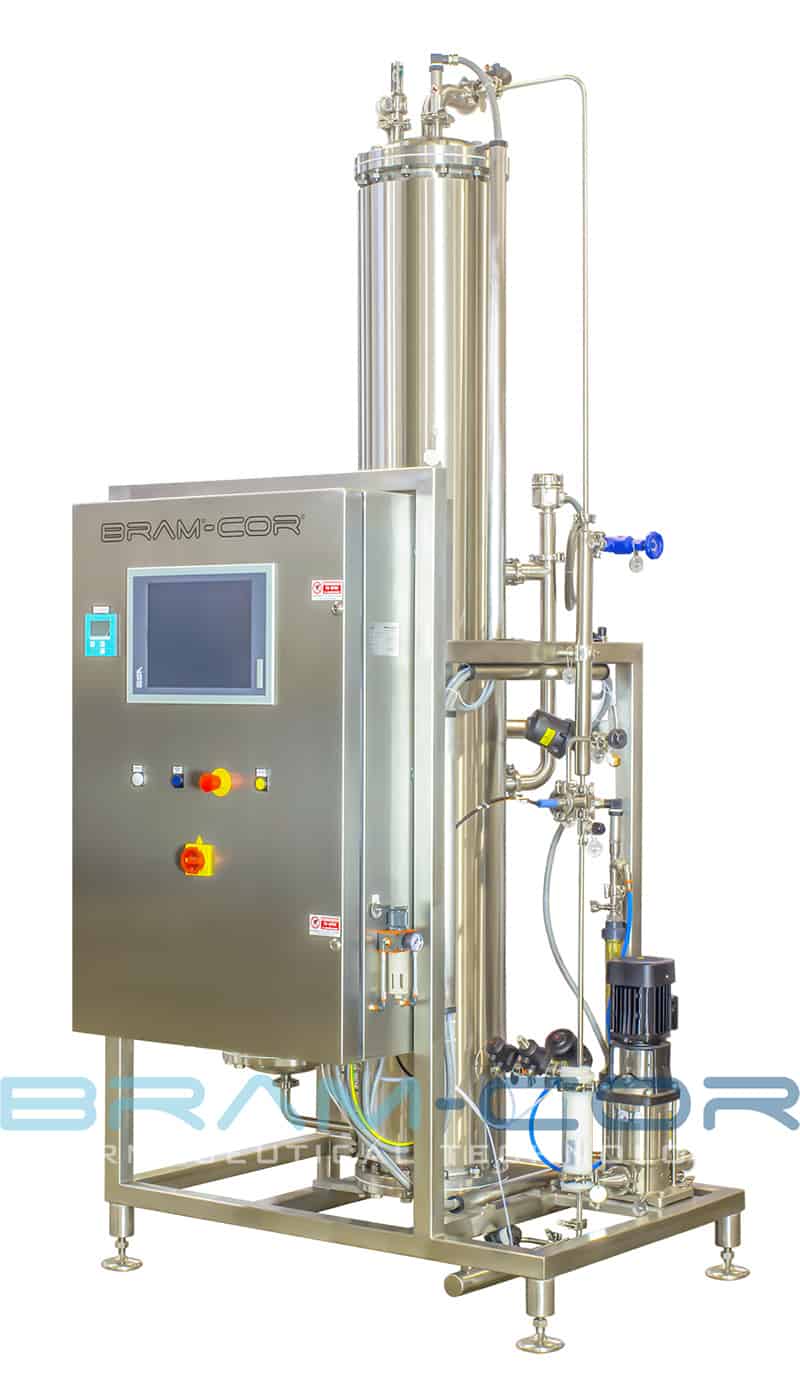

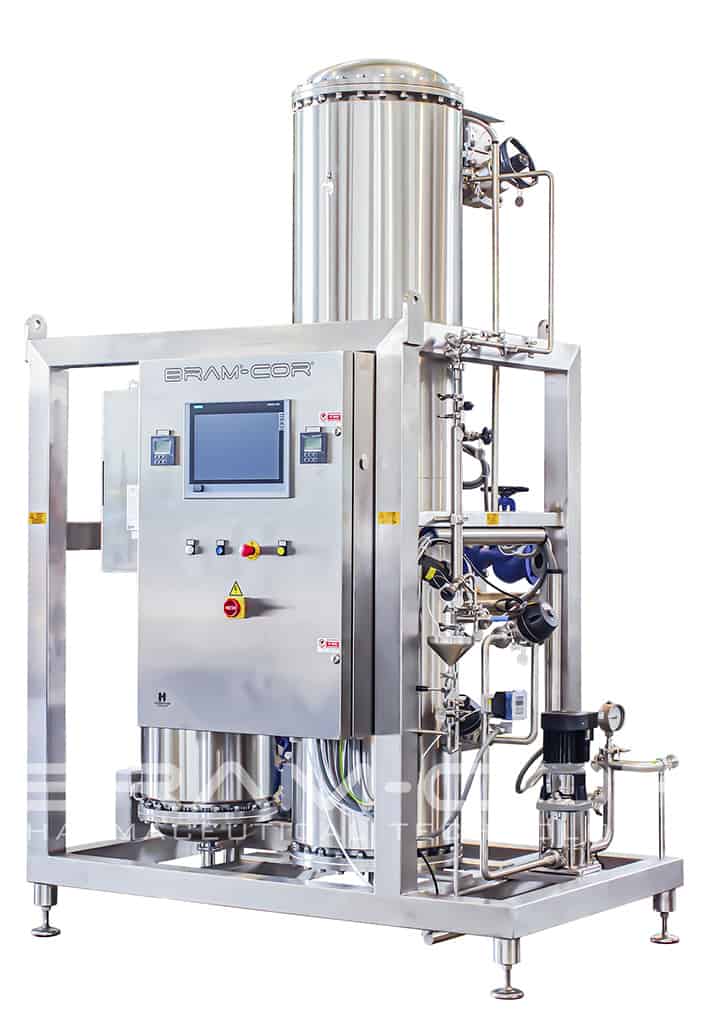

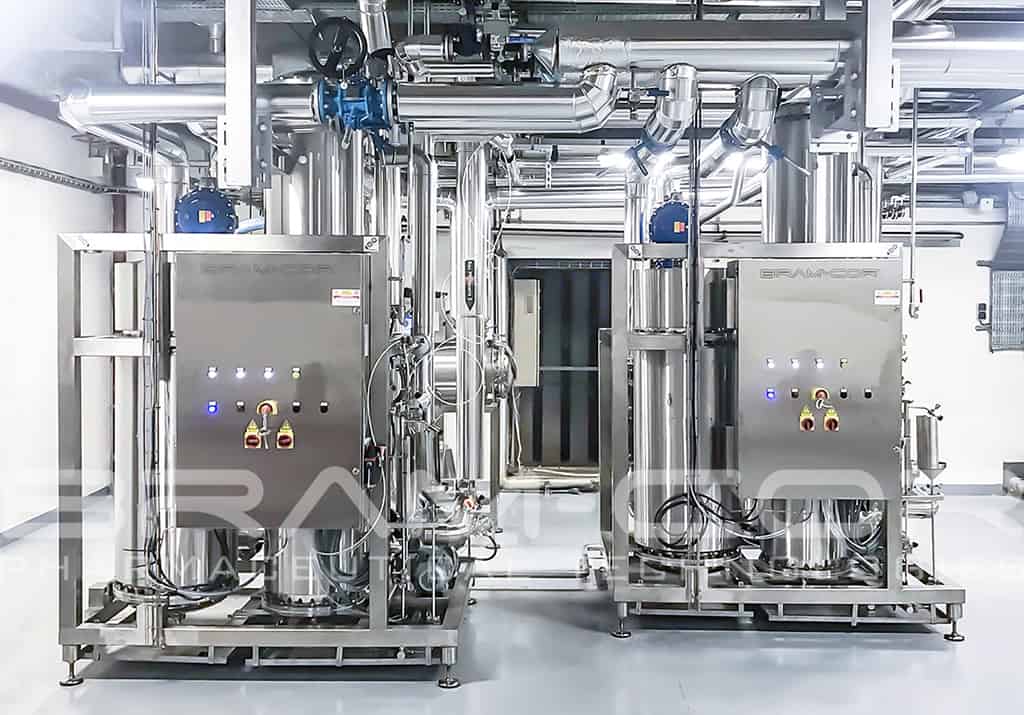

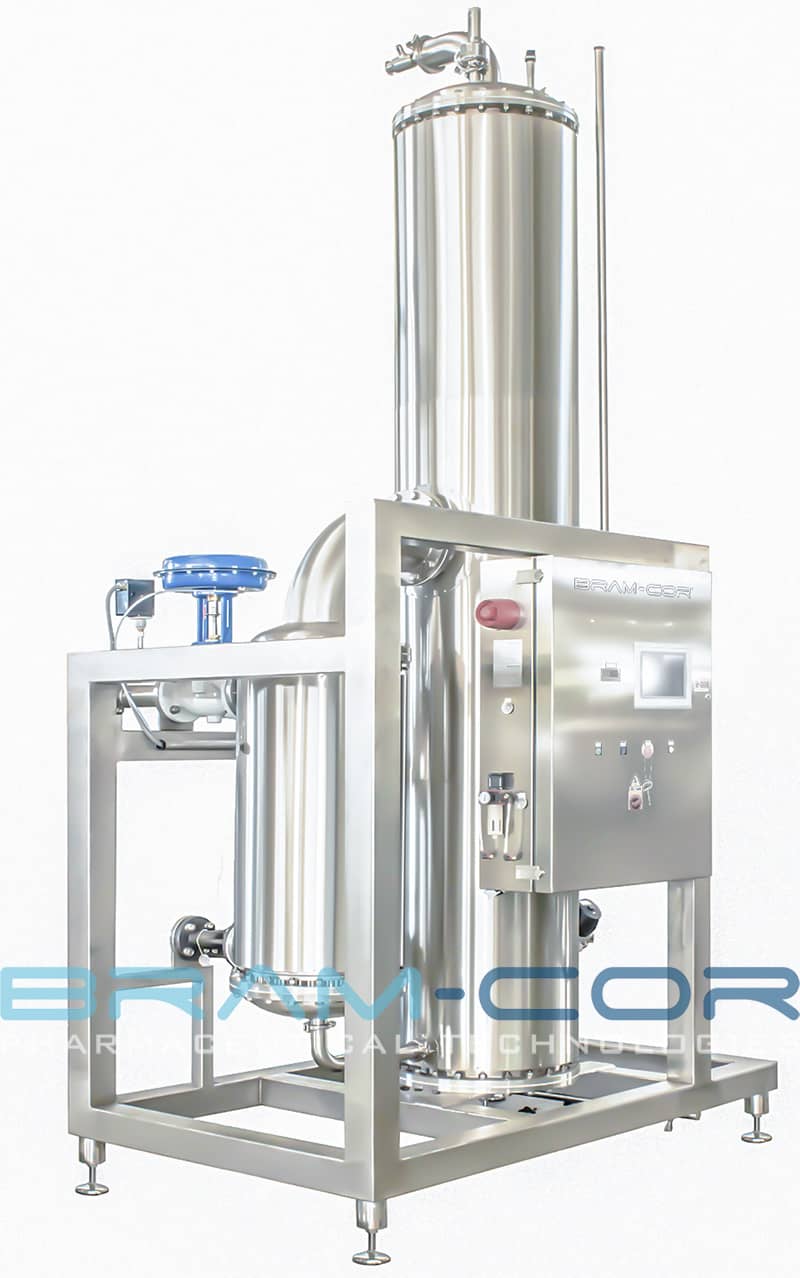

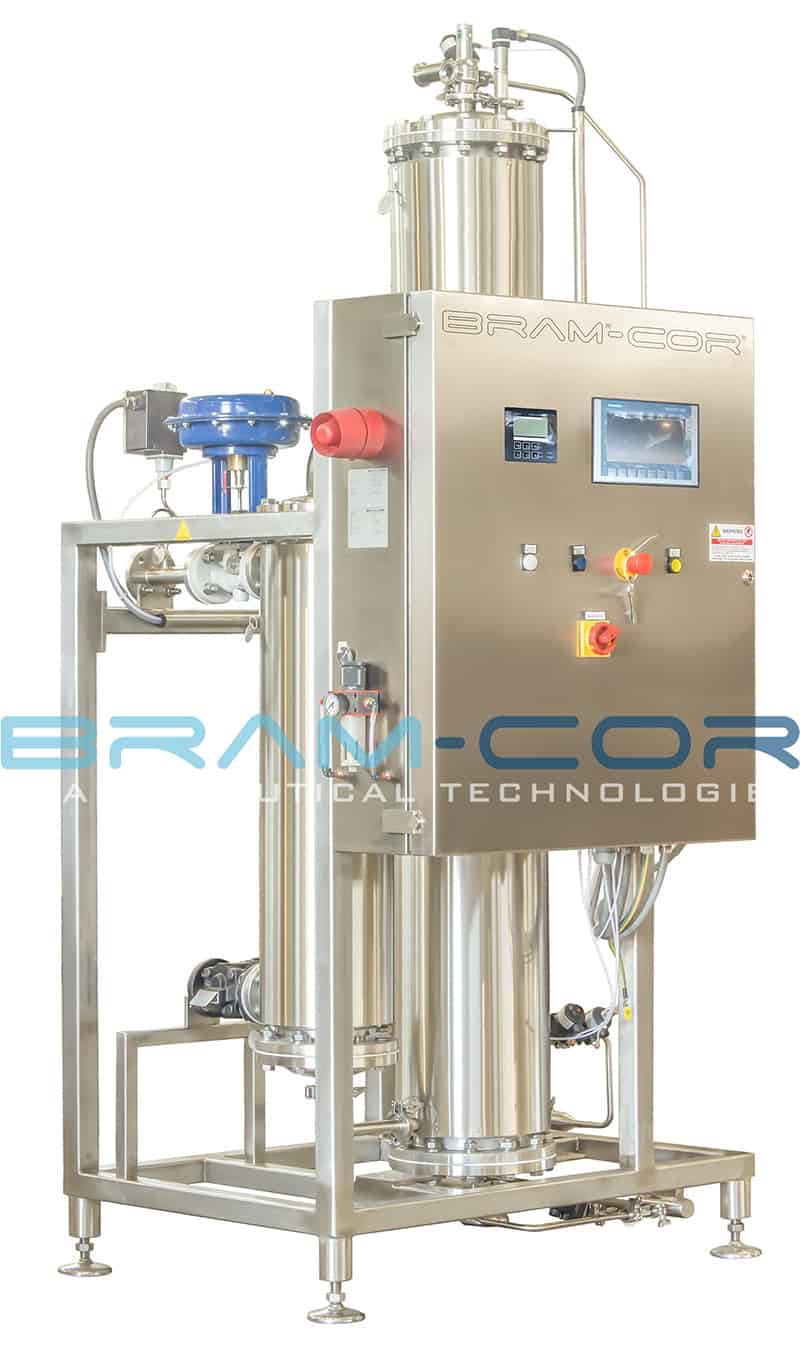

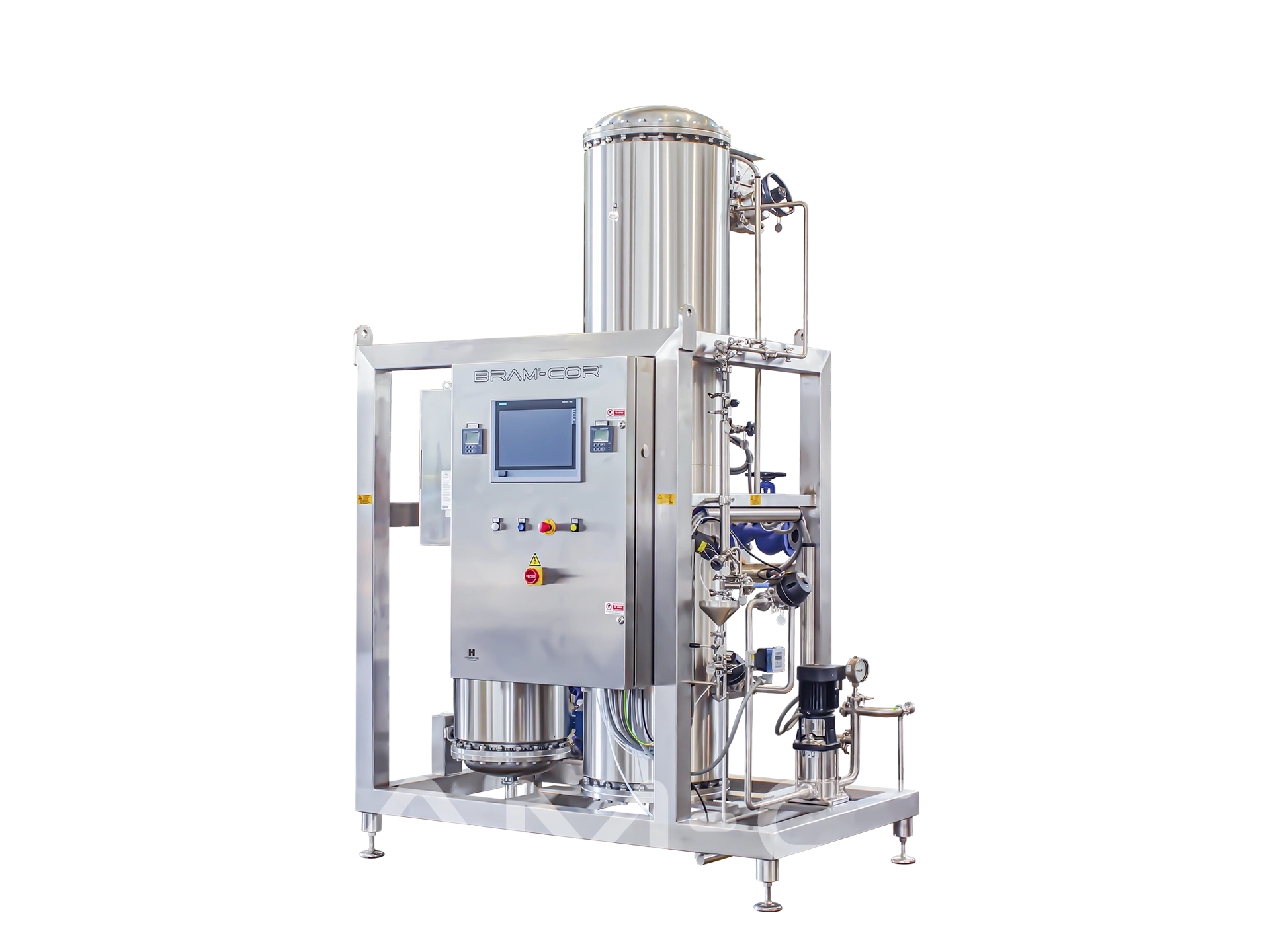

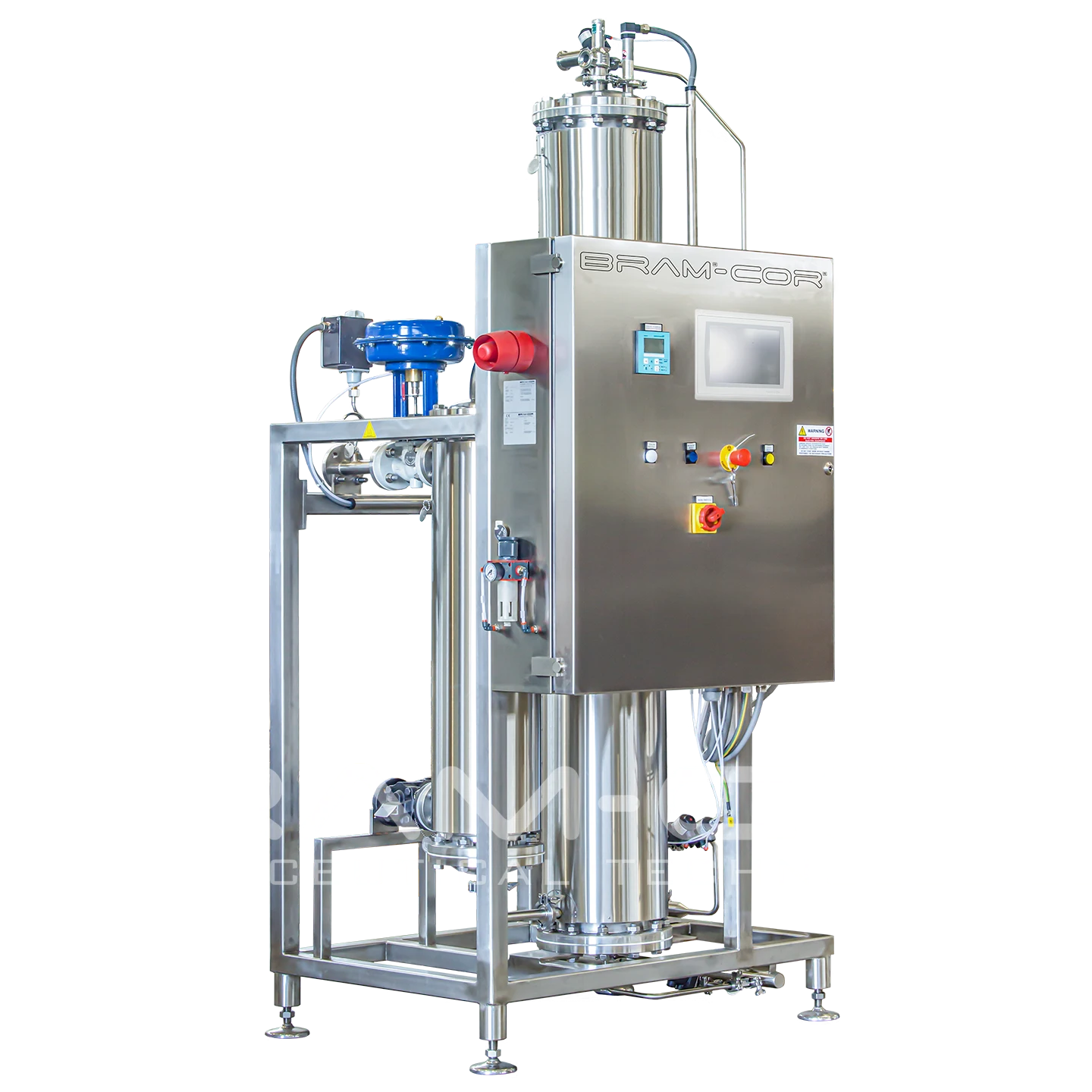

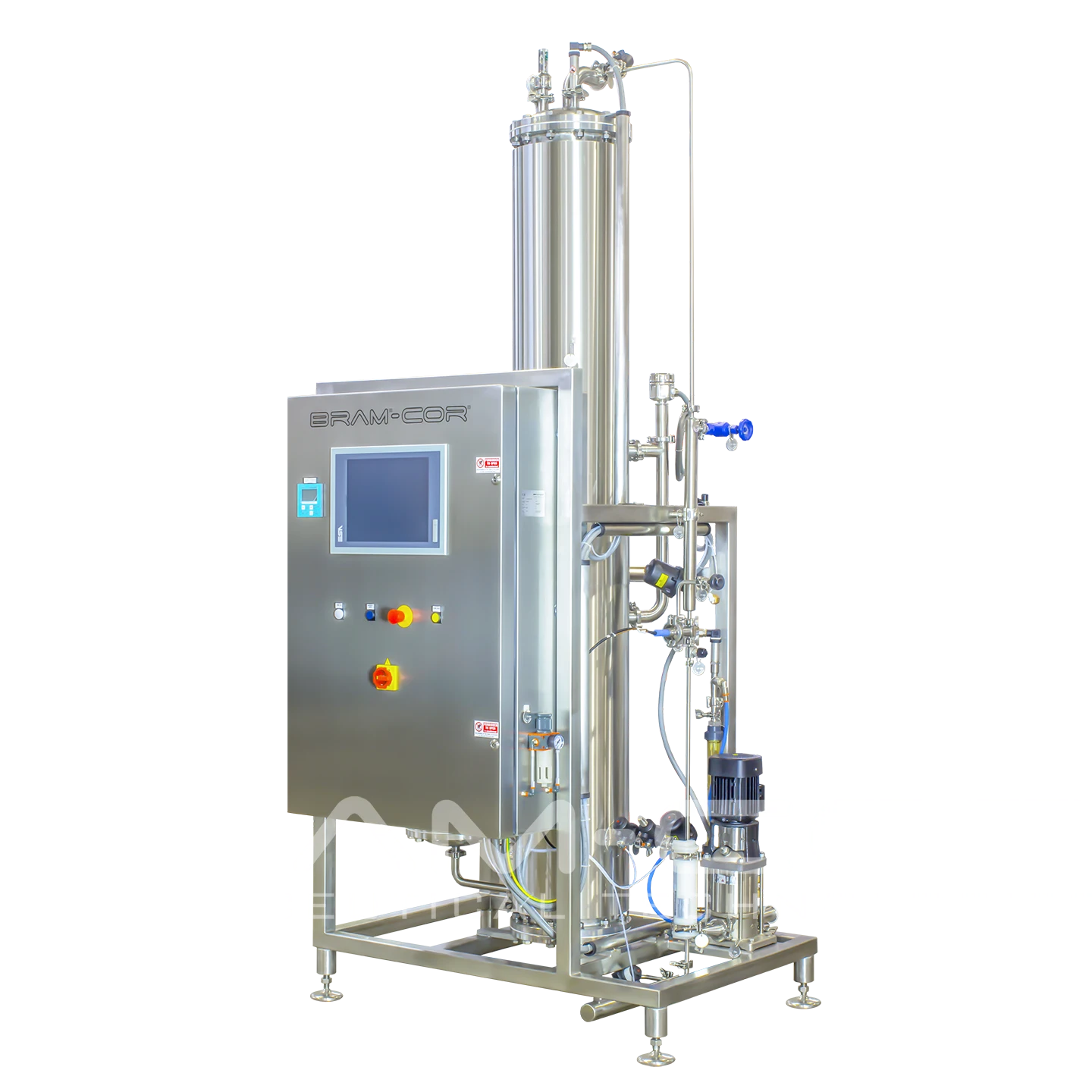

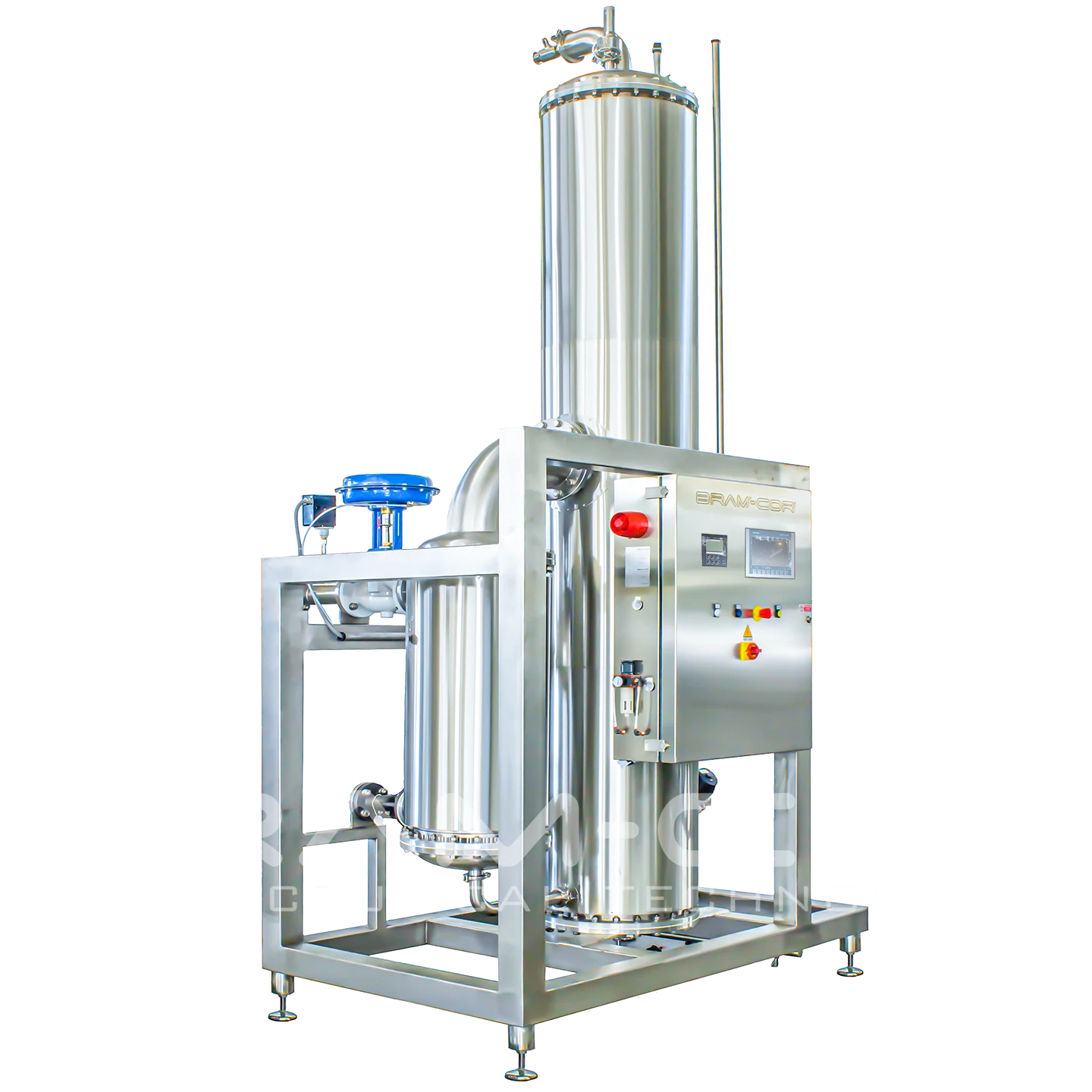

BRAM-COR CPSG Pure Steam Generator produces dry, saturated steam, suitable for sterilization of pharmaceutical production plants, for direct contact with Active Pharmaceutical Ingredients, for Parenteral and Non-Parenteral dosage form applications. The steam, when condensed, meets USP requirements for Water-for-Injection. The steam is purified using centrifugal and gravity separation methods.

cGMP, ASME and PED standards are baseline criteria in BRAM-COR Pure Steam Generators design and construction: material and instruments are certificated and all welds are made by qualified welders. In detail:

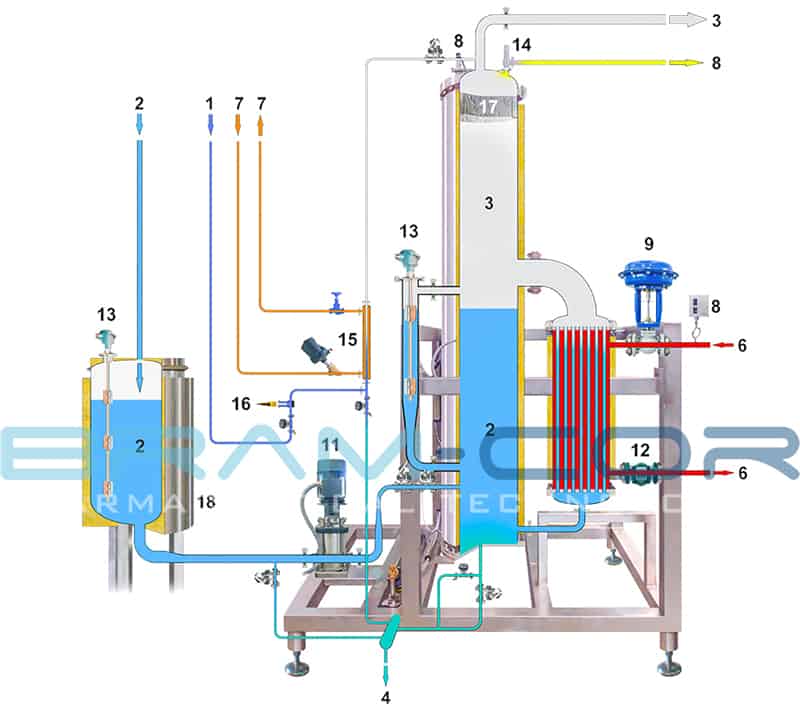

  • The evaporation column is designed to minimize steam speed to avoid the entrainment of water droplets, which are separated from the steam by means of a special separator.

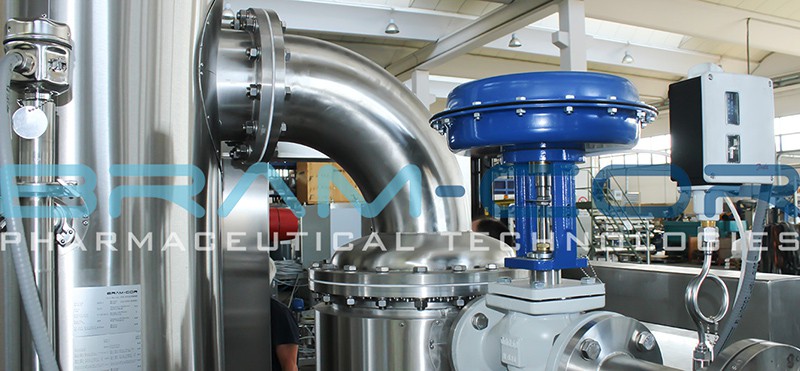

  • A Double Tube Sheet Heath Exchanger provides heating of pre-treated feed water above the boiling temperature, generating pure steam which expands into the evaporation column. Heathing medium in the DTS Heath Exchanger is typically industrial steam at 100 to 120 psig (6 to 8 barg).

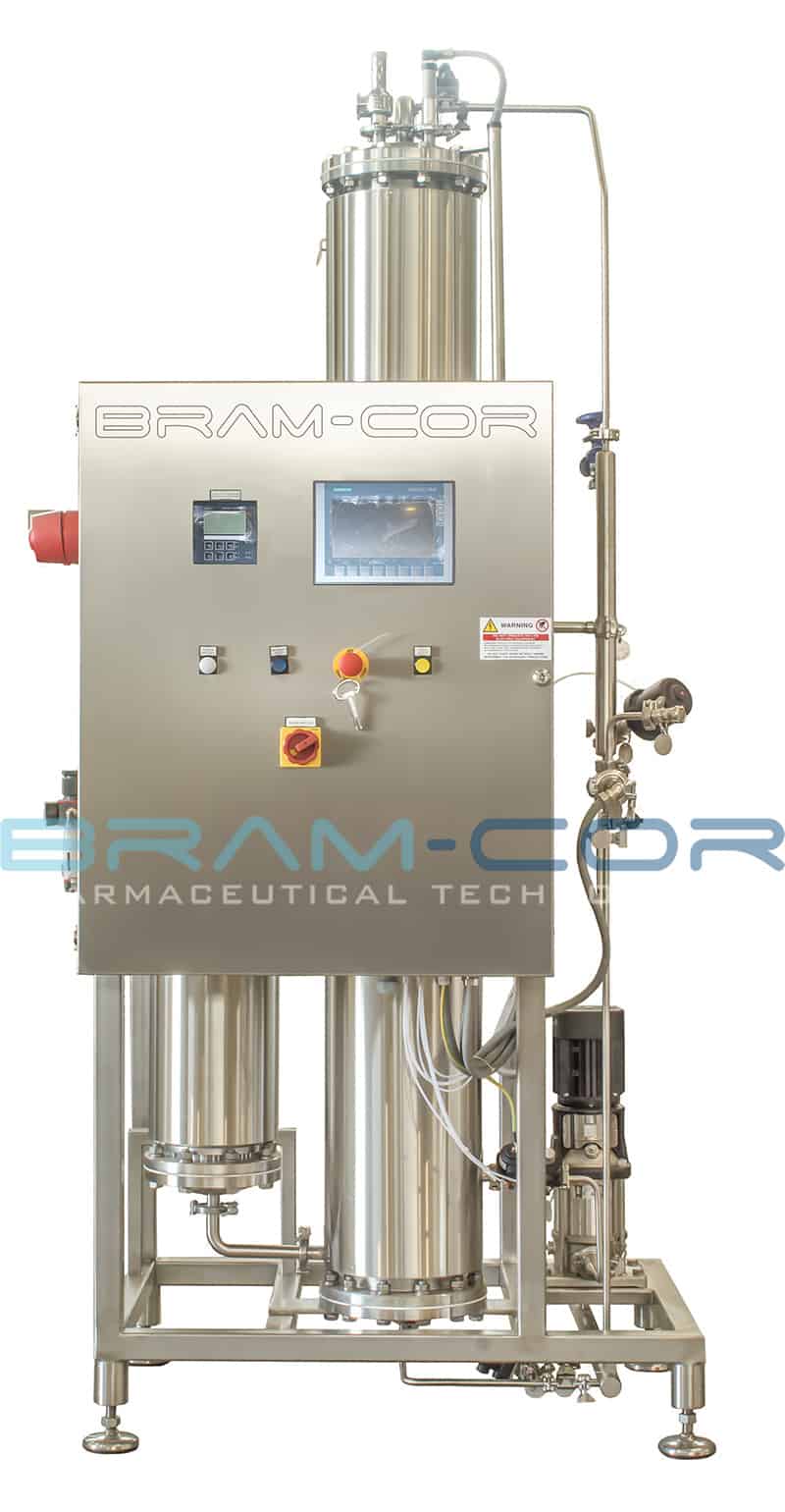

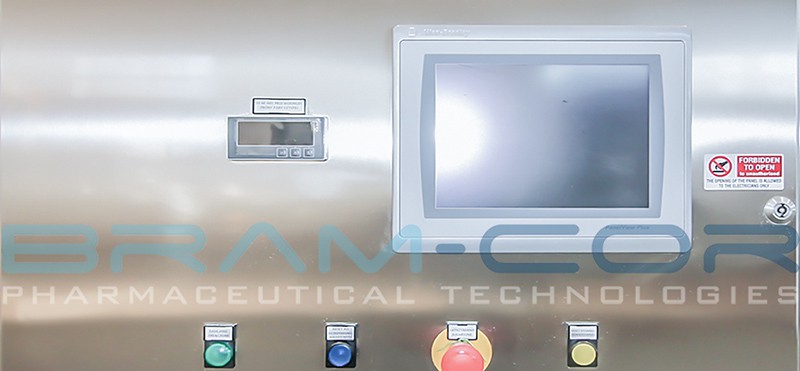

  • Pure steam pressure is maintained by an electronic control system, modulating the supply steam control valve and monitoring the evaporator feed water.

Further information is also available on the dedicated site: www.puresteamgenerators.net

The system shall be fed with Purified Water and heated basically through Plant Steam but also by Electricity or even Superheated Water. Capacities range: from 20 to 5000 kg/h.

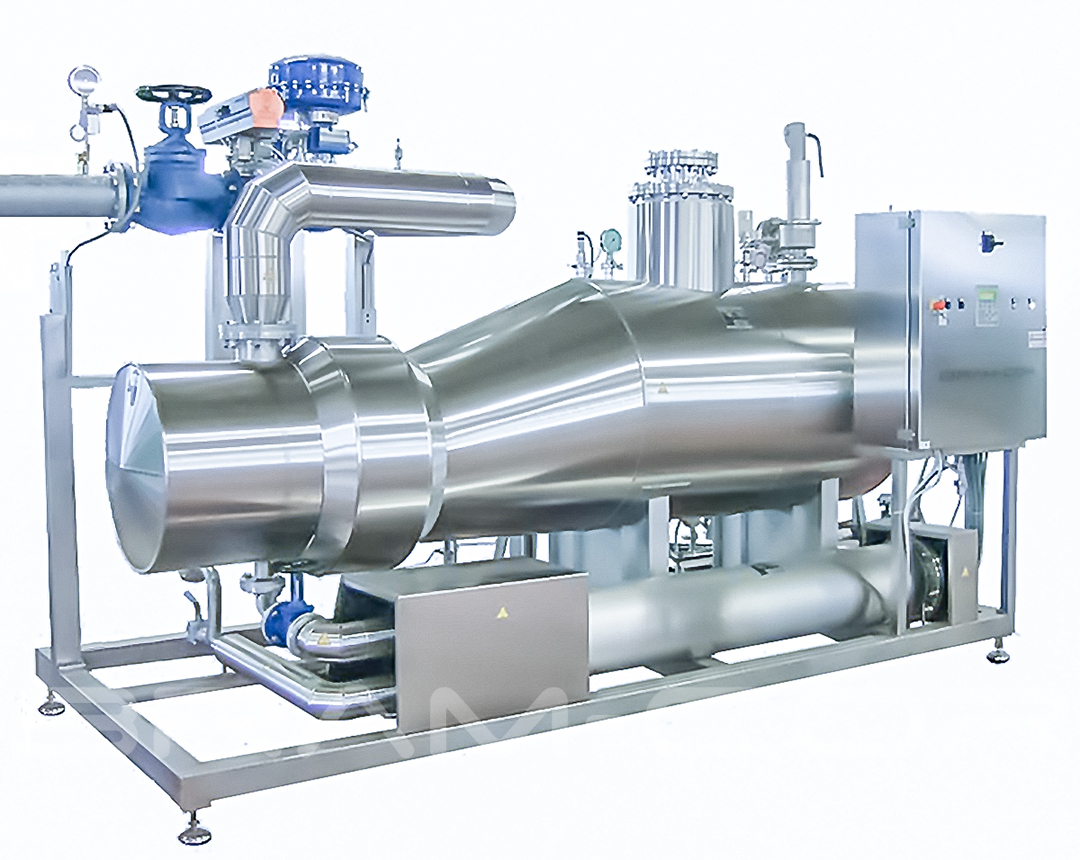

PURE STEAM GENERATOR WITH HORIZONTAL EVAPORATOR

KPSG Kettle Pure Steam Generators, provided with a horizontal evaporation chamber with kettle end, are also available for special space needs in case of high capacities.
